Electromechanical UTM Tensile Strength Testing Machine

Place of Origin : China

Brand Name : GC

Certification : ISO

MOQ : 1 Set

Packaging Details : Wooden package

Delivery Time : In stock

Payment Terms : TT

Supply Ability : 100 Sets

Price : Negotiated

Model Number : GC-WS-1000S

Model NO. : GC-WS-1000S

Max Diameter of Workpiece : <500mm

Mass Scope of Workpiece : <900kg

Type : Strength Testing Machine

Maxcapacity : <1000KN

Accuracy Grade : 0.5

Load Way : Electronic Load

Loading Method : Dynamic Load

Display : Digital

Control : Computer Control

Weight : 100-500Kg

Power Source : AC220V

Oil Cylinder Position : Under

Test Width : 400mm(Optional)

Power Unit : N,Kg,Lb,kN...

Power : 220V/50Hz

Protected Mode : Computer Printout

Transport Package : Wooden Package

Specification : 86*73*216cm

Trademark : GC

Origin : China

Package Gross Weight : 220.000kg

Customization : Available

Warranty1 Year : 12 Months

Contact Now

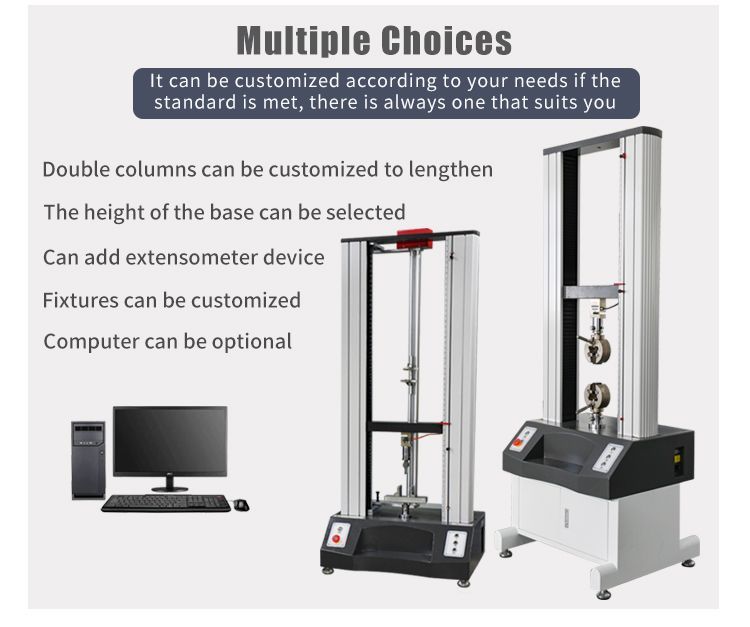

Double-Column Tensile Testing instrument With PC Data Analysis

-The Double-Column Universal tensile test machines are available in various configurations, including hydraulic, electromechanical, and servo-hydraulic systems.
-They can perform a wide range of tests, including tension, compression, bending, and fatigue testing, making them essential tools for quality control, research, and development in many industries.

Electromechanical UTM Tensile Strength Testing Machine

Electromechanical UTM Tensile Strength Testing Machine

Model	GC-WS-1000S
Type	Double column (gantry-type)
Load range	0~10KN(0-1000KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc

·GB/T 1040-2006 Test mothod for tensile properties
·GB/T 9341-2008 Test method for bending properties of plastics
·ISO 527-1993 Plastics - determination of tensile properties
·GB/T 13022-91 Methods of tensile test for plastic films
·ISO 178-2004 Plastics bending test
·ASTM D 638-2008 Standard test method for tensile properties of plastics

Electromechanical UTM Tensile Strength Testing Machine
